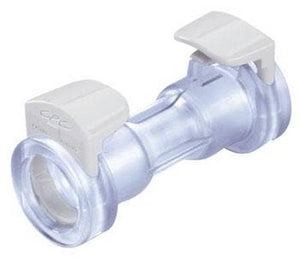

CPC: Back-to-Back Adapters: Bodies MPC17C1703

MPC/MPX Back-to-Back Adapters give end-users the flexibility of connecting single-use systems that feature identical coupling connections at the end of their tubing. Combining both MPC and MPX couplings provides a reducing option for users who need to transition between tubing diameters ranging from 1/8" to 1/2".

MPC Body x MPC Back-to-Back Body Adapter
Material:
Polycarbonate, USP Class VI, ADCF
Material Finish:
Natural
Pressure Range:
Up to 60 psi, 4.1 bar
Color:
Purple Tint
Mounting Option:
Free Floating
Sterilization:
Gamma, autoclave
Temperature Range:
-40ºF - 250ºF (-40ºC - 121ºC)
Valve Option:
Non-Valved

Features & Benefits

  • Compatible with MPC and MPX Series inserts
  • Easy conversion to industry standard connections or single-use systems
  • Tubing reduction option
  • Allows easy transition between multiple size tubing from 1/8" to 1/2" ID
  • Ergonomic thumb latches
  • Easy to operate - even with gloved hands
  • BSE/TSE free materials


Pressure: Vacuum to 60 psi, 4.1 bar

Temperature:

Polycarbonate: -40ºF to 250ºF (-40ºC to 121ºC)

Polysulfone: -40ºF to 300ºF (-40ºC to 149ºC)


Materials:
 Main component:

Polycarbonate (purple tint), USP Class VI, ADCF

Polysulfone (amber tint), USP Class VI, ADCF

Thumb latches:
 Polycarbonate (white), USP Class VI, ADCF

Polysulfone (amber tint), USP Class VI, ADCF

O-rings:

Silicone (clear), platinum-cured, USP Class VI, ADCF

Sterilization:
 Gamma irradiation:
 Up to 50 kGy irradiation

Autoclave:

Polycarbonate: Up to 250ºF (121ºC), 30 minutes, up to 10 repetitions. Sterilize uncoupled only.

Polysulfone: Up to 270ºF (132ºC) for 60 minutes, up to 25 repetitions. Sterilize uncoupled only.

WARNING: Pressure, temperature, chemicals and operating environment can affect the performance of couplings. It is the customerÕs responsibility to test the suitability of CPC's products in their own application conditions.

Meet ADCF requirements
